Global Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510. Globals manufacturer part number 40-8511530.

Shipped with mounting screws.

Global Ada Latch Knob & Cover, W/ Screw Chrome Plated, also known as 40-8513370g. This was used up until October 2021.

Chrome plated Global Latch Knob & Cover, also known as 40-8513380g. This was used up until October 2021.

Global Partitions Concealed Ada Latch Knob Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 1380

Global partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are for 1" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left hand as hinges are field reversible. This is done by taking the 3 pieces apart and reconfiguring the opposite swing. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8441007

Outswing door Kit: 40-8441008

Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571007

Outswing door Kit: 40-8571008

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

Global Concealed Latch Knob & Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 1380, 6140.

ASI Alpaco Indicator Latch is used by Accurate and Global Partitions. This European design is featured on the Alpaco Classic and Elegance Collection. Stainless steel construction make this indicator latch durable. These latches are created to be used on 3/4" thick material. Red and White indicator is used to show whether the stall is in use. Offers emergency access fom the outside with coin slot feature. Also known as 8273100.

Global Complete Hinge Set with Rounded Edge. Used currently with these factories Global, General and Flush Metal and Accurate Partitions. Complete as shown in picture with the parts. Includes top pin, top hinge, bottom cam, pintle and bottom hinge and security screws. Used with powder coated steel and stainless steel partitions with a slight round edge. These will not work with old original Accurate Partitions prior to 2013. Used 2013 to current with Accurate Partitions.

Global partitions door kit for plastic laminate material. The hinges and door stop are for 1" thick material only. We offer in a chrome finish or a stainless steel version. You will need to choose in or out swing and which finish you would like. These manufacturers numbers below. Used with Global and Accurate partitions.
See link for Instructions ***Plastic laminate hinge instructions

Chrome inswing 8512013
Chrome outswing 8512014

Stainless Steel Inswing 8262013
Stainless Steel outswing 8262014

Global partitions new style door kits, used September 2021 to current. This door kit includes cast stainless steel hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8263513 for inswing parts and 8263514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Global partitions new style door kits, used September 2021 to current. This door kit includes chrome plated zamac hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8513513 for inswing parts and 8513514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

The Global Partitions stainless steel Ada latch knob & cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished.  The 9G3370 meets ADA compliance codes. The manufacturer part number is 40-8263370. This was used up until October 2021.

Chrome Plated Slide Bolt Latch 1-1/2" Wide X 3-1/4" High, 2-3/4" Between Screws. Die cast construction and polished chrome plated. Used on Accurate Toilet Partition and Global Toilet Partitions. Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.

The Global Partitions stainless steel latch knob & cover with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished. The manufacturer part number is 40-8263380. This was used up until October 2021.

Cast Stainless Steel Slide Bolt Latch W/Indicator. For 3/4" or 1" Door, 2-3/4" between screws. Also known as 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.robertbrooke.com/bathroom/partition-parts/latches/chrome-plated.html

https://www.robertbrooke.com/bathroom/partition-parts/latches/cast-stamped-stainless-steel.html

Cast Stainless Steel Slide Bolt Latch 1-1/2"W X 3-1/4"L, 2-3/4" Between Screws. Used on Accurate and Global Toilet Partitions. Cast stainless steel, also known as 40-256300, 40-8562899, 8698. This latch is Ada approved.

Global Complete ADA Door Kit . This door kit includes all you see and the security screws. Also known as 40-8513512. Chrome Plated. For complete door kit add 9G4000 kit. This was used up until October 2021.

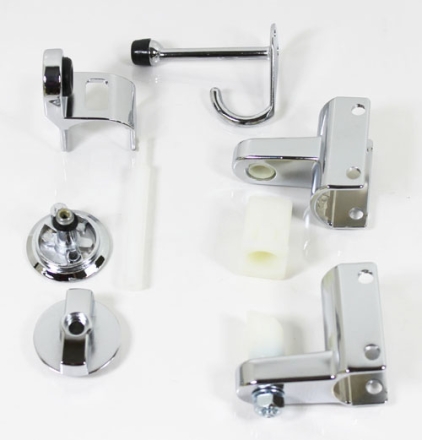

Global Complete Standard Door Kit . This door kit includes all you see and the security screws. Also known as 40-8513500. Chrome Plated. This was used up until October 2021.

Global Stainless ADA Door Kit . This door kit includes all you see and the security screws. Also known as 40-8263512. Cast stainless steel construction. For complete door kit add 9G500SS standard kit. This was used up until October 2021.

The Global Partition Complete Stainless Steel Door Kit is the manufactures hardware package.  They are constructed of cast stainless steel. Included in the kit is a top and bottom hinge, concealed latch, keeper bumper, pintle, cam, coat hook and bumper, all of the hinge pins and the security screws.  The manufacture part number is 40-8263501. This was used up until October 2021.

General Partitions Concealed Latch Knob, Cover And Pin Chrome Plated. Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin and 5080 Straight Pin. Only 1 pin is sent. Also used with Global and Fiat partitions.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Chrome plated global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8513010.

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Stainless Steel global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8263010.

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

Global Partitions Top Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.

Shipped with mounting screws.

A=1-7/6"

Global Partitions Bottom Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.

Shipped with mounting screws.

A=1-7/6"

Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.

Cast Stainless Steel Construction

40-8562305

Cast Stainless Steel Construction. Used for a Partition door to stop and lock on it.

40-8562306

Cast Stainless Steel Construction

40-8562307

Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.
